Machine à laver les bottes

Boot Washing Machine is a walk-through station that automatically cleans and disinfects both the soles and uppers of high boots. Its rotating brushes scrub all surfaces while applying disinfectant, effectively removing contaminants. It is essential for maintaining hygiene in facilities such as livestock farming, food processing plants, and laboratory environments.

Dual-Action Protection

Designed for High BootsThe ED-S20 Fully Automatic Disinfection Boot Washer is constructed with durable 304 stainless steel for superior wear and corrosion resistance. Its integrated disinfectant system ensures thorough sterilization, combining cleaning, disinfection, and access control in one automated process.

Featuring automatic start/stop and supporting continuous multi-person throughput, it seamlessly integrates with air showers. Ideal for livestock farming, food processing, and various controlled environments, it effectively maintains hygiene standards at the entry point.

How does Boot Washing Machine Work

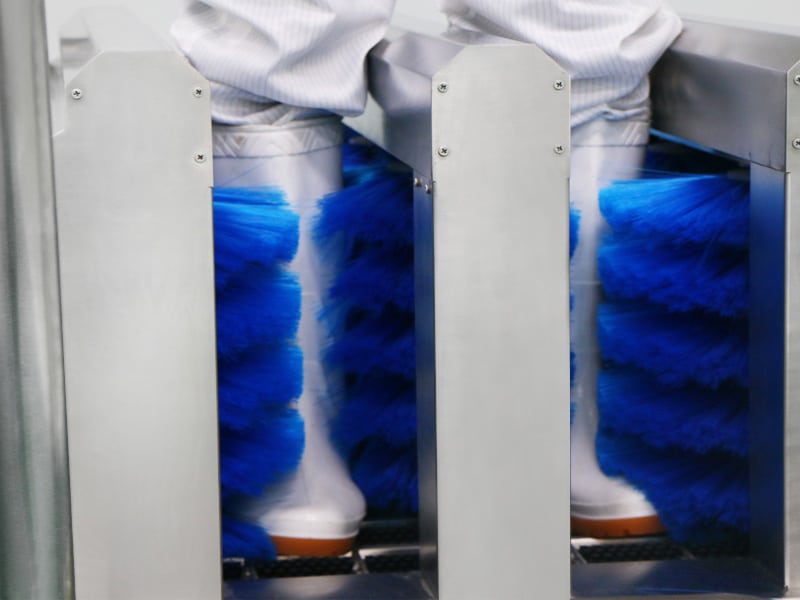

1. 360° Envelop & Scrub

Motorized spiral brushes actively rotate around the entire boot, removing caked-on mud from all surfaces.

2. Dual-Action Spray & Disinfect

High-pressure water rinses debris while a misting nozzle simultaneously applies disinfectant for a complete clean.

3. Rapid Moisture Removal

Absorbent rollers efficiently wick away excess water from soles and sides, preventing slippery floors.

4. Automated Cycle Refresh

The system automatically drains wastewater and prepares fresh solution, ensuring hygiene for every user.

Intelligent et écologique

Multilingual Touch Control

An intuitive 6-language touchscreen allows for quick and easy setup.

Complete 360° Cleaning

Motorized bottom and side brushes ensure thorough cleaning of all surfaces.

Auto Start/Stop

Activates and pauses automatically for hands-free operation.

Drainage automatique

A direct-connect pump rapidly expels wastewater to prevent clogs

Smart Water Retention

PVA sponges lock in moisture, keeping floors dry and clean.

Système de nettoyage hybride avancé

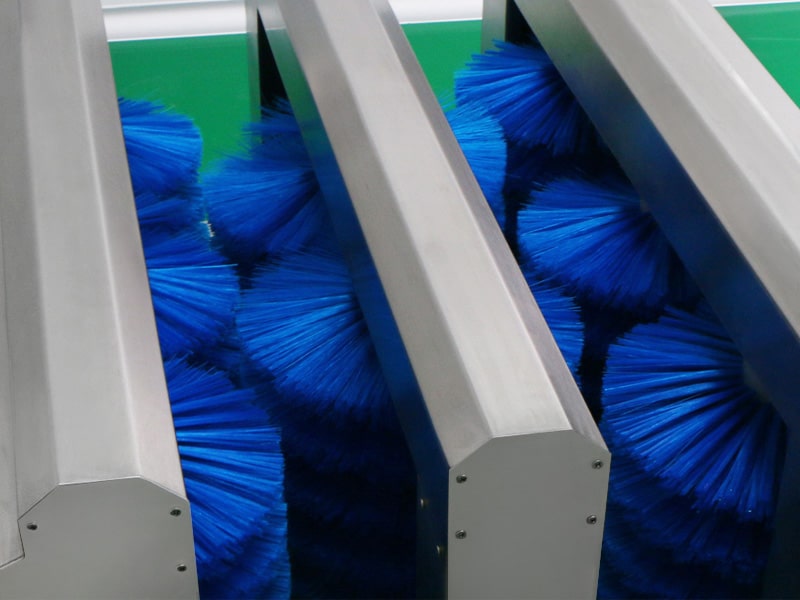

1. Full-Wrap Cleaning System

Bottom roller brushes and side spiral brushes provide 360° scrubbing, achieving over 99% surface cleaning effectiveness.

2. 100% Coverage Disinfection

Fog nozzles evenly mist disinfectant across the entire boot surface for complete sterilization.

3. Sturdy & User-Friendly Design

Durable structure with a wipe-clean surface and stable handrail ensures safe and easy operation.

4. Flexible Disinfection Setup

A separate liquid tank supports any disinfectant concentration for customized sanitization.

Before & After Cleaning

Test Item (Unit)	Before	After
Total Bacterial Count (CFU/cm² )	2.0*10⁴	＜1
Total Fungal Count (CFU/cm²)	6.7*10³	＜1

Lab tests show the ED-S20 reduces boot-surface microbial counts by over 99%. This proven efficiency makes it a critical hygiene solution for livestock, food processing, and controlled manufacturing facilities.

before and after boot cleaned by boot cleaning machine

Boot Washing Machine Parameter

Objet	Details / Value	Objet	Details / Value
Dimension	1500760960mm	Operating Current	3A
Sewage Pump	120W	Spray Pump	20W
Bottom Brush Motor	200W, 220V	Side Brush Motor	45W, 24V DC
Cleaning Area	760*480mm	Main Body Material	SUS304 Stainless Steel
Absorbent Pad	PVA / PU Sponge	Operational Noise	<60dB
Activation Sensor	Photoelectric / Mechanical	Safety Protections	Short circuit / Overload / Leakage
Pump Voltage	24V DC	Water Tank Capacity	30L
Drying Area	430*550mm	Maximum Load Capacity	260 kg
Drainage Method	Automatic / Manual	Durée de vie	8 ans
Tension de fonctionnement	110/220V AC	Weight	~150kg
Disinfectant	Low-concentration common disinfectants

Questions fréquemment posées

What is the ED-S20 boot washing machine for?
It automatically cleans and disinfects work boots at facility entry points to prevent contamination.
Which industries is boot washer designed for?
Entrées des salles blanches, des laboratoires, Zone protégée contre les décharges électrostatiques (ESD), livestock farming, food & dairy processing, pharmaceuticals, and any controlled environment.
How does the cleaning process work?
Boots are scrubbed by rotating brushes, rinsed with water, disinfected with mist, and dried—all in one pass.
Does the boots cleaning machine require special installation?
Non, l'installation est très simple. Il suffit de raccorder le tuyau d'arrivée d'eau et le tuyau de vidange, puis de brancher l'alimentation électrique.
How long does the cycle take?
About 8–12 seconds per person, depending on soil level.
À quelle fréquence les brosses et les tampons doivent-ils être remplacés ?
La fréquence de remplacement dépend de l'utilisation. En général, les brosses durent 2 à 3 ans et les tampons doivent être remplacés tous les ans.
How should the boot wash machine be maintained?
Regularly refill disinfectant, clean the tank, and occasionally check brushes and pumps.
How much does a boot washing machine cost?
Email us for a quick quote right now: esd@macrosafegates.com
